Product Introduction:

Jumbo curtain nozzle helps to extinguish the fire by cutting off its supply of oxygen and choking off the flames. Water wall nozzles are commonly used in large-scale fires, such as those that occur in high-rise buildings or industrial complexes, and can be used to protect firefighters and other emergency personnel from the intense heat and flames. They are designed to be highly maneuverable and easy to operate, making them an essential tool for firefighters and emergency responders.

Send Inquiry

Description

Technical Parameters

Products Description

Overview

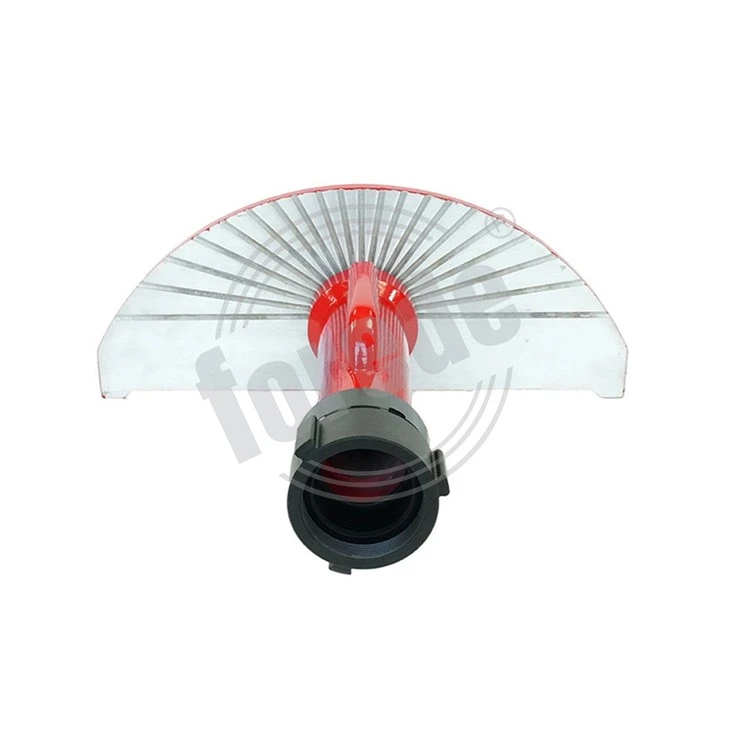

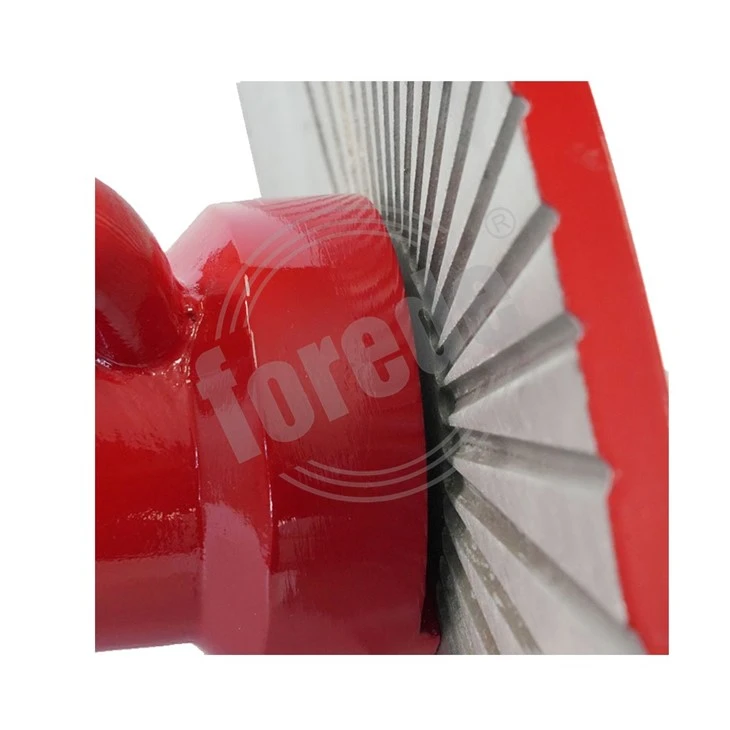

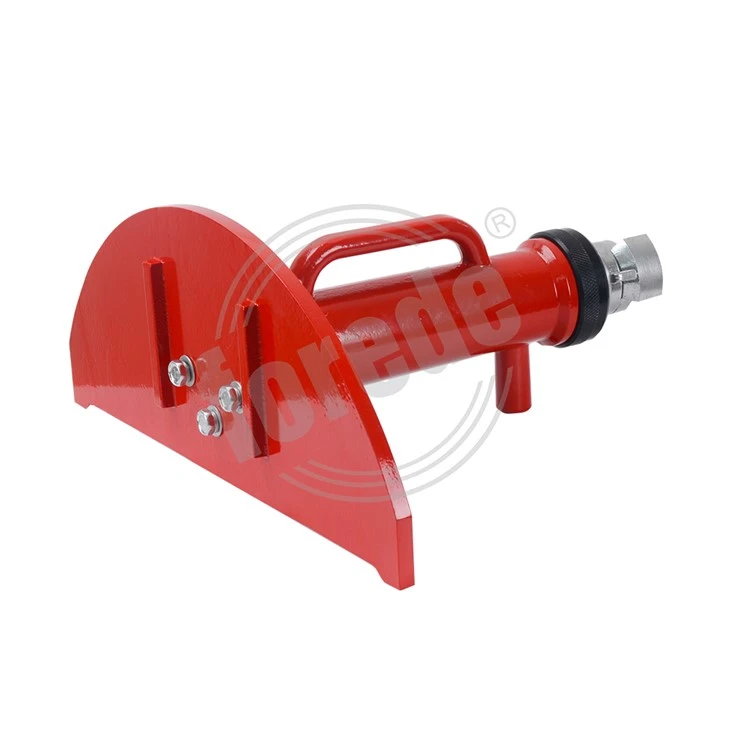

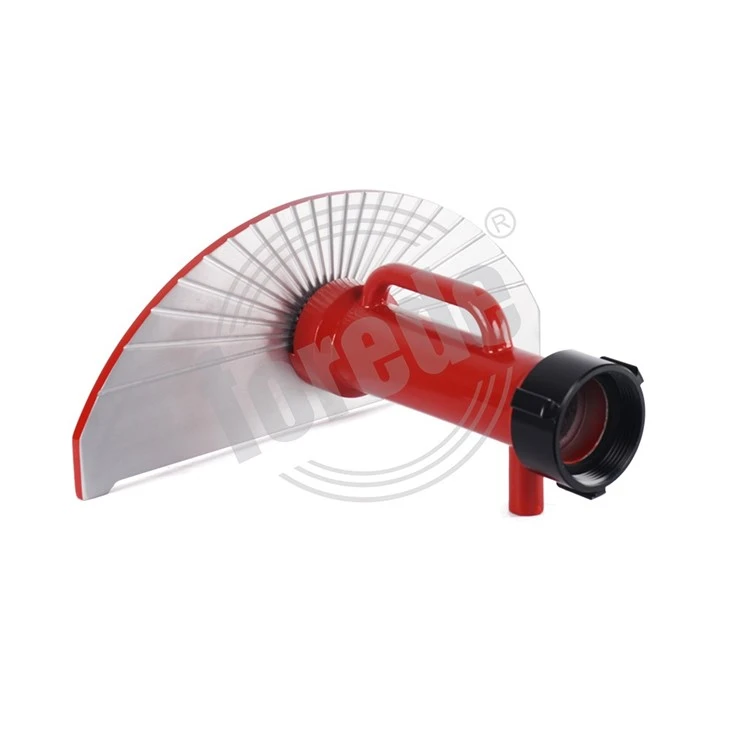

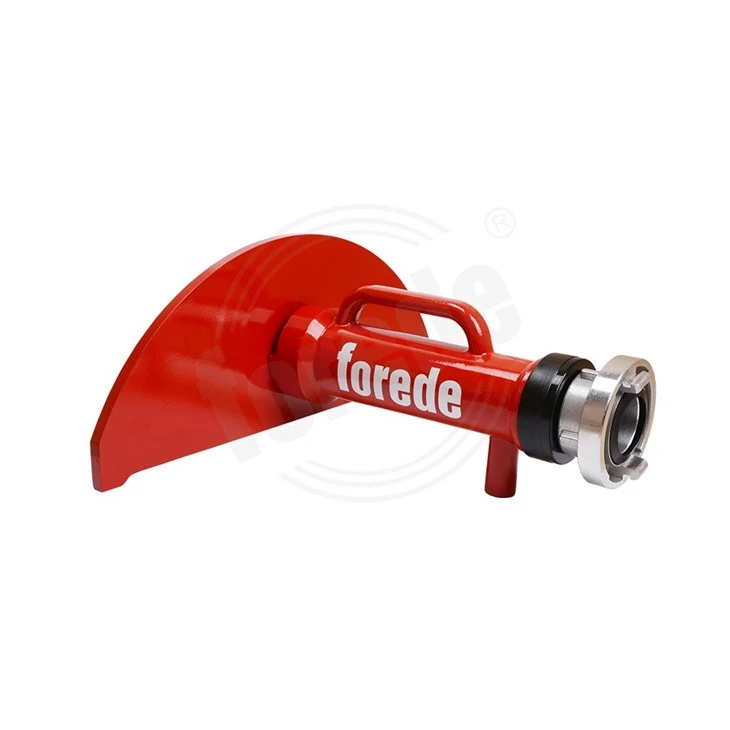

forede® jumbo curtain nozzle with arge-diameter open-type fire sprinkler head with a wide front guide plate spraying a 120° continuous thick fan-shaped water wall upwards. It does not directly extinguish fires, but is primarily used for fire separation, blocking high-temperature radiant heat, and isolating smoke and flame spread. It is suitable for high-risk industrial scenarios such as petrochemical plants, storage tanks, and tunnels.

Application:

Oil refineries, oil and gas stations, LNG storage tank areas

Chemical plants, hazardous chemical warehouses, power plant transformer areas

Tunnels, large loading and unloading conveyor belts, giant doors and windows in factory buildings

Ship platforms, port hazardous materials storage yards

As fire compartment partitions, replacing firewalls, ensuring fire safety for vehicle/equipment passageways

Features

Product Name: Jumbo curtain nozzle

Flow Rate: 500/800/1000LPM

Material: Aluminum alloy

Products Description

forede® jumbo curtain nozzle with different size and standard for option:

Model	Material	Inlet Size	Working Pressure	Max. Fog angle
FRD-WN-6/500	Hard Anodized Aluminum Alloy	2" / 50 mm	6bar	120°
FRD-WN-6/800	Hard Anodized Aluminum Alloy	2.5''/65mm	6bar	120°
FRD-WN-6/1000	Hard Anodized Aluminum Alloy	2.5''/65mm	6bar	120°

FAQ

Q: What is jumbo curtain nozzle?
Short name for jumbo water curtain nozzle, large-flow open fire nozzle to build thick water wall for heat radiation isolation.

Q: Two material options?
Bronze (JC) for normal industry; 304/316 SS (JCS) for coastal & chemical corrosive site.

Q: Standard sizes?
DN65/DN80/DN100 flanged, 63mm portable coupling optional.

Q: Can it extinguish fire directly?
No, only fire separation & heat shielding, not direct fire suppression.
