Foam Chamber

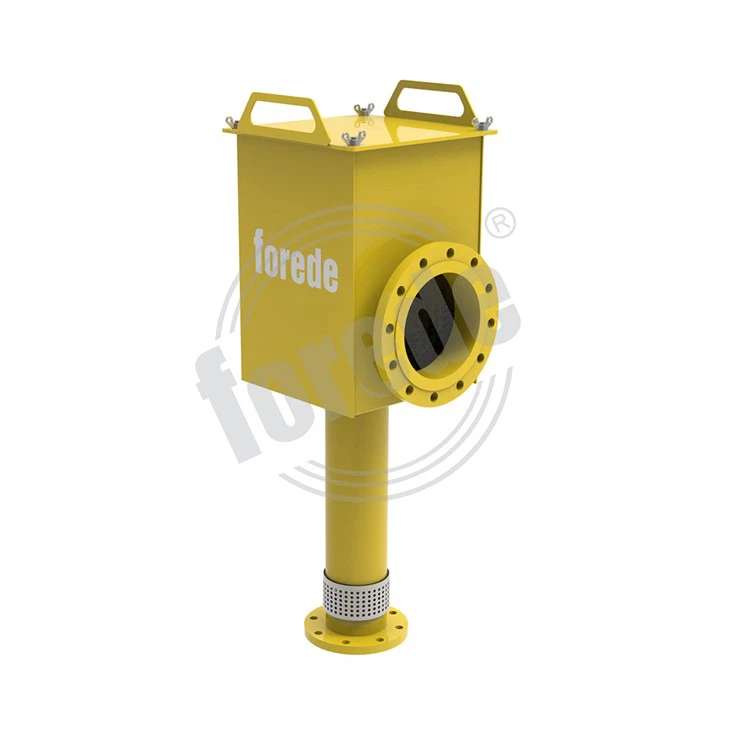

FOREDE low expansion foam chamber is a device used in firefighting to disperse foam over a large area quickly and efficiently. Foam chambers are usually used in conjunction with a foam concentrate and water supply to suppress and extinguish fires by smothering the flames and reducing heat. Low expansion foam chambers are designed to produce a large, slow-moving bubble that can cover a wide area, making them ideal for use in warehouses, hangars, and other large spaces. The low expansion foam chamber is attached to a pipe or hose near the ceiling of the area to be protected, and foam is discharged through openings in the chamber, creating a dense foam blanket on the floor or exposed surfaces. This type of foam is also called Class A foam, which is used for fighting fires in ordinary combustibles such as wood, paper, or cloth.
Specifications
|
Model Number
|
Description
|
Flow Rate
|
Inlet Size
|
Outlet Size
|
|
PCL4
|
Low Expansion,Vertica
|
240 LPM
|
50mm (2'')
|
80mm(3'') |
|
PCL8
|
Low Expansion,Vertica
|
480 LPM |
65mm (2.5'')
|
100mm (4'') |
|
PCL16
|
Low Expansion,Vertica
|
960 LPM | 80mm(3'') |
150mm (6'')
|
|
PCL24
|
Low Expansion,Vertica
|
1440 LPM |
100mm (4'')
|
200mm (8'')
|
FAQ
Q:Is the sample provided for free?
A few small products like sprinkler decorative covers can be provided for free, but the buyer needs to pay for the shipping. Other products need to be confirmed according to the specific situation.
Q:How to mail the samples?
Small samples are usually sent by express (DHL, UPS, FEDEX, TNT). If the buyer has other opinions, both parties can discuss with each other.
Q:What is your term and payment?
Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
Related Products
Recommend Products
Contact Us
Our address
Nan'an City, Quanzhou City Fujian PRC-China
Phone Number
+86 13215065797
sales5@forede.com
Hot Tags: forede low expansion foam fire fighting, China, manufacturers, suppliers, wholesale, price, Foam Chamber Fire Fighting, Vertical Foam Chamber, Low Expansion Foam Chamber, Inline Foam Inductor, Tank Foam Chamber
Feature
Expansion :Low expansion,≥ 5 Times;
Flange End: ANSI / BS4504 / GB/;
Main Material: Carbon Steel;
Installation Type: Vertical Installation;
Working Pressure Range: 0.3-0.7Mpa;
Rated Working Pressure: 0.5Mpa;
25% Liquid Drain Time : ≥ 120 s;
Surface Finishing : Epoxy Fire Red.
