What are the typical components of a deluge valve assembly?

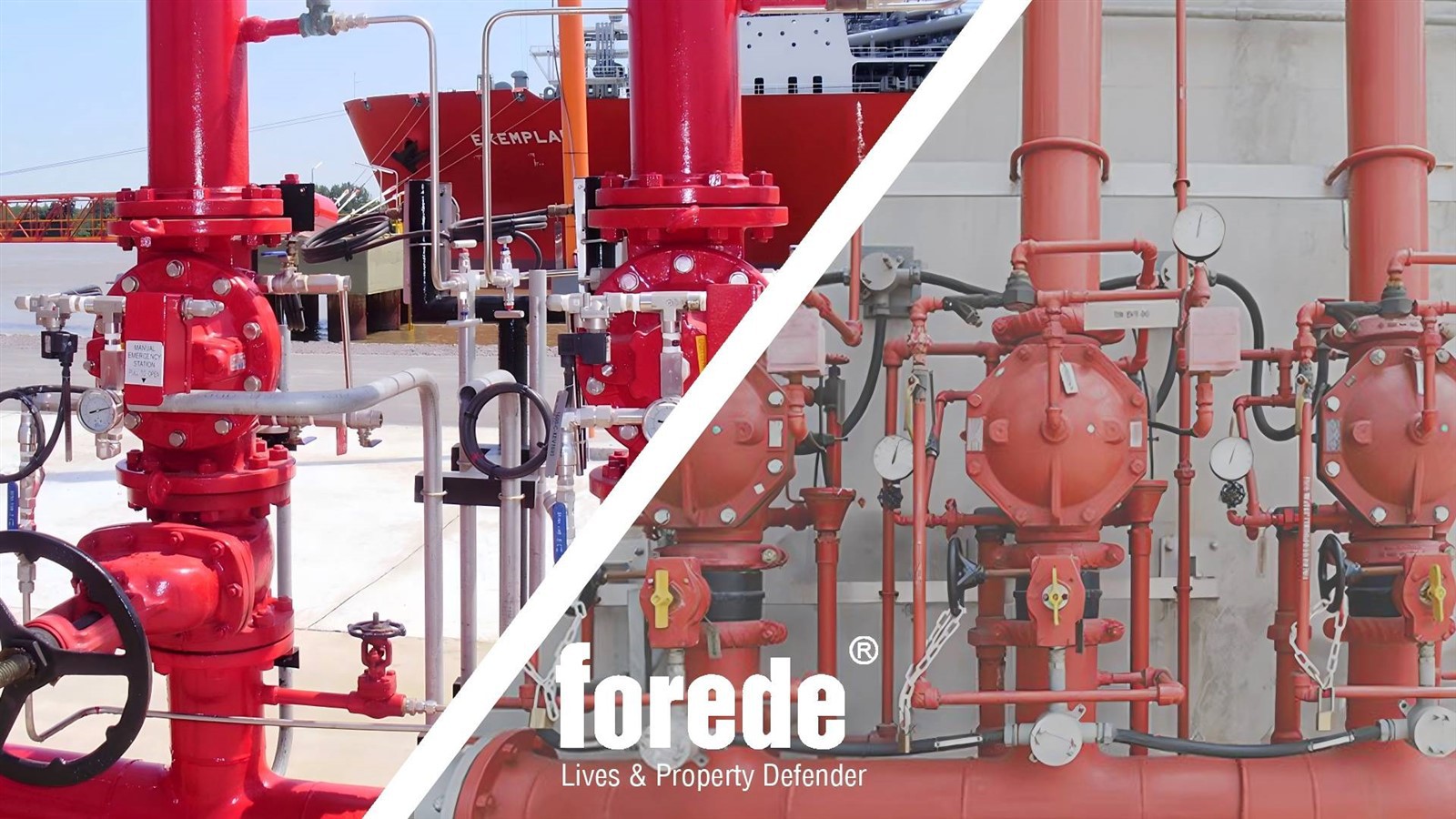

A deluge valve assembly is a crucial part of fire protection systems designed for rapid water discharge in high-hazard areas. Its key components include:
Deluge Valve – The main control valve that releases water when activated.
Trim System – Includes solenoid valves, pressure gauges, and alarm switches for monitoring and control.
Activation Devices – Heat, smoke, or flame detectors trigger the valve via electrical or pneumatic signals.
Alarm & Retard Chamber – Delays valve closure slightly to prevent water hammer and activates alarms.
Strainer – Filters debris to prevent clogging of sprinklers or nozzles.
Check Valve – Prevents backflow and maintains system pressure.
Drain Valve – Allows testing and maintenance by draining residual water.
