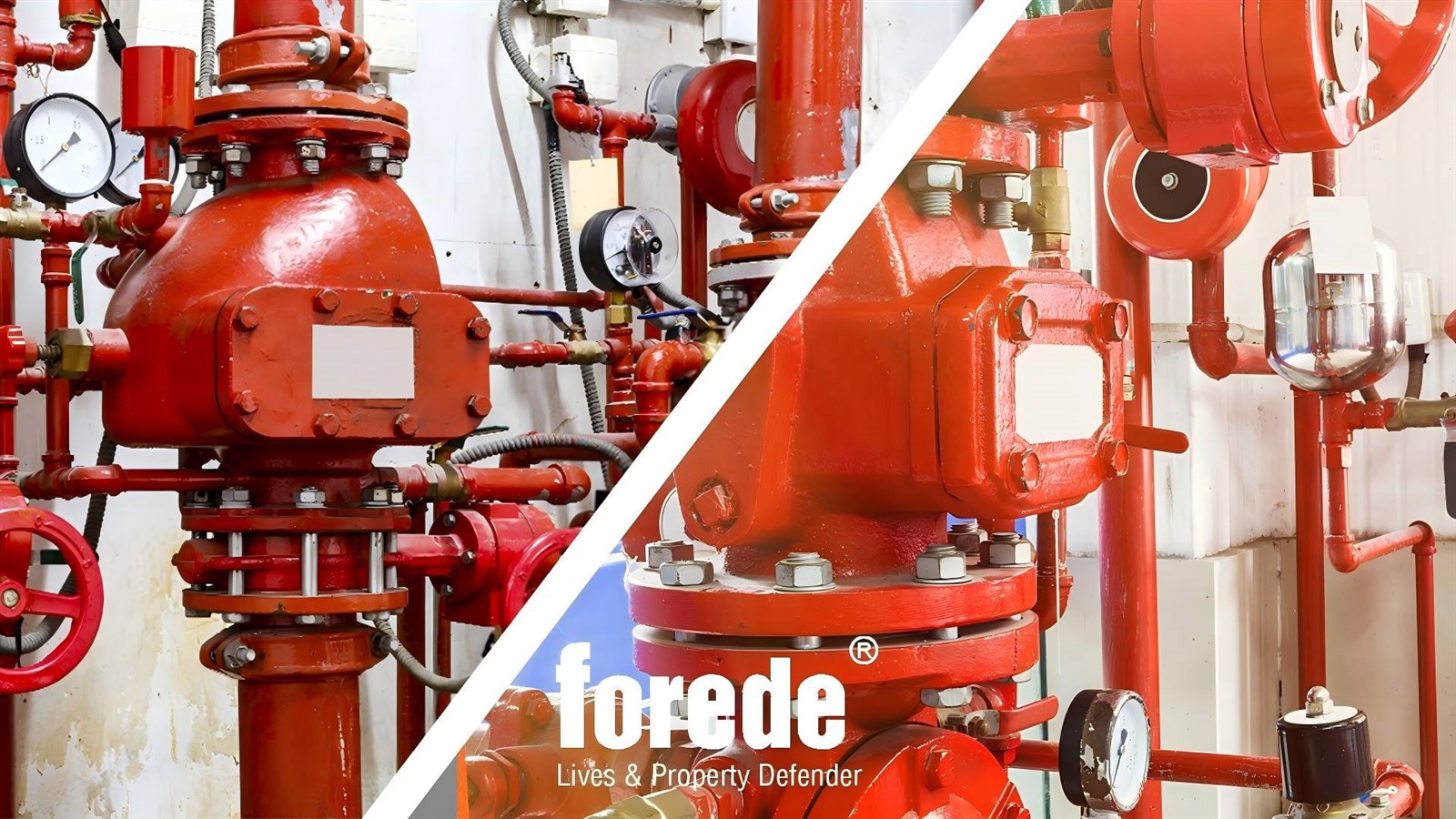

Comprehensive Overview of Fire Alarm Check Valve
Fire alarm check valves are critical components in fire protection systems that serve dual purposes: they prevent the backflow of water in sprinkler systems while simultaneously monitoring water flow to trigger fire alarms. These specialized valves play an indispensable role in modern fire protection infrastructure, ensuring both the proper functioning of water-based suppression systems and early fire detection.
The primary function of a fire alarm check valve is to maintain water pressure in the system while allowing water to flow in only one direction. When water begins moving through the system (indicating a sprinkler head has activated due to heat from a fire), the valve's alarm mechanism is triggered, sending a signal to the building's fire alarm control panel. This dual functionality makes fire alarm check valves unique among fire protection components.
1. Working Principle of Fire Alarm Check Valves
-
Check Valve Mechanism
The fundamental operation of the check valve portion follows standard check valve principles:
Under normal conditions, water pressure from the supply side keeps the valve disc or clapper sealed against the valve seat
When pressure on the system side drops (due to sprinkler activation), water flows past the clapper into the system
The clapper is designed to open fully at predetermined flow rates while preventing any reverse flow
The valve is typically designed to open at a specific pressure differential, ensuring it responds appropriately to actual sprinkler activation while remaining closed during normal pressure fluctuations.
- Alarm Mechanism
The alarm portion operates through several possible mechanisms depending on valve design:
Water motor alarm: A small portion of the flowing water is diverted to drive a turbine or paddle wheel that activates a mechanical alarm
Pressure switch: Changes in water pressure activate an electrical switch that sends a signal to the fire alarm panel
Flow switch: Direct sensing of water movement triggers the alarm circuit
In most designs, the alarm mechanism is only activated when water flow exceeds a minimum threshold, preventing false alarms from minor pressure fluctuations. The alarm typically continues until manually reset, even if water flow stops.
Fire alarm check valves consist of numerous precision components that work together to provide reliable operation. Understanding these parts is essential for proper maintenance and troubleshooting.
2. Components and Construction
Main Valve Body
Typically constructed of durable materials:
- Bronze: Common for smaller valves, resistant to corrosion
- Ductile iron: Used for larger valves, often with corrosion-resistant coatings
- Stainless steel: For specialized applications requiring exceptional corrosion resistance
The valve body must withstand system pressures (typically 175 psi or higher) and resist degradation from continuous water exposure.
Clapper Assembly
The moving part that controls water flow:
- Clapper disc: The sealing surface that mates with the valve seat
- Hinge mechanism: Allows the clapper to swing open in one direction only
- Seat ring: The machined surface against which the clapper seals
Materials are carefully selected to prevent sticking or corrosion while maintaining a watertight seal.
Alarm Mechanism Components
Varies by design but typically includes:
- Paddle assembly: Detects water flow
- Gear train: Transmits motion in mechanical alarms
- Switch contacts: In electrical alarm models
- Retard chamber: If included in the design
These components must operate reliably after years of inactivity while being sensitive enough to detect actual sprinkler operation.
3.Applications in Different Fire Protection Systems
Wet Pipe Sprinkler Systems
The most common application, where valves:
- Maintain system pressure
- Prevent backflow into supply lines
- Activate alarms when sprinklers operate
These systems represent the majority of fire alarm check valve installations.
Combined Dry Pipe/Pre-action Systems
In hybrid systems, valves may:
- Interface with dry pipe valves
- Provide alarm functions for multiple system types
- Require specialized configurations for proper operation
Standpipe Systems
For high-rise buildings, valves:
- May be installed at various floor levels
- Often incorporate pressure regulation
- Require careful balancing to maintain proper operation
Special Hazard Systems
In industrial applications, valves might:
- Handle specialized suppression agents
- Withstand extreme environmental conditions
- Interface with detection systems for rapid response
