Products Description

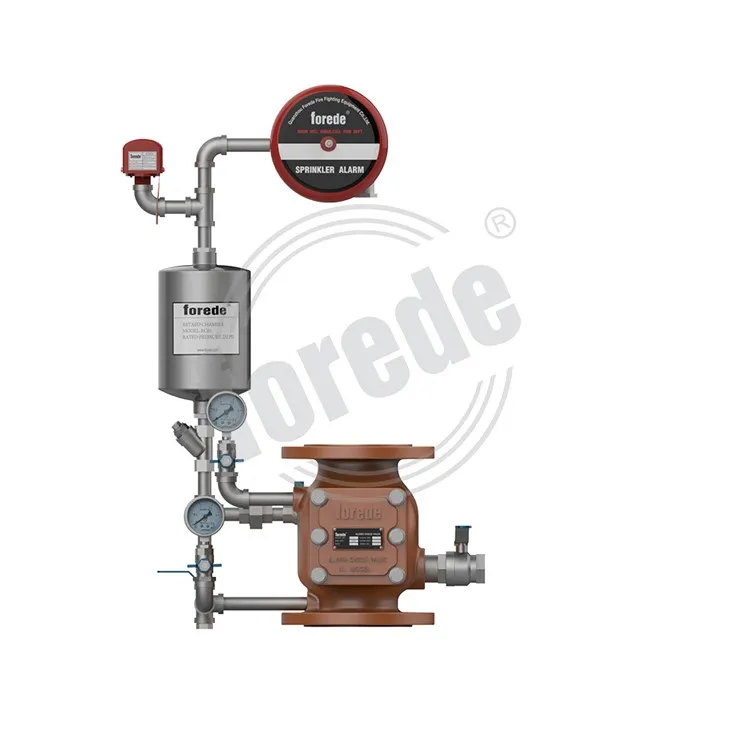

Flange Wet Alarm Check Valve is a kind of important equipment for automatic fire alarm system, it can quickly and accurately detect the water reaches the fire source, and send alarm signals in time, effectively prevent fire accidents.
Products Parameters
| Model Number | Size | H(mm) | H1(mm) | L(mm) | W(mm) | BS4504 PN16 | ANSI 150# | ||||
| A | B | N | A | B | N | ||||||
| FRD-AV1 80 | DN80(3") | 605 | 240 | 725 | 350 | 160 | 18 | 8 | 152.5 | 19 | 4 |
| FRD-AV1 100 | DN100(4") | 605 | 240 | 725 | 350 | 180 | 18 | 8 | 190.5 | 19 | 8 |
| FRD-AV1 125 | DN125(5") | 615 | 273 | 755 | 400 | 210 | 18 | 8 | 216 | 23 | 8 |
| FRD-AV1 150 | DN150(6") | 615 | 273 | 755 | 400 | 240 | 22 | 8 | 241.5 | 23 | 8 |
| FRD-AV1 200 | DN200(8") | 615 | 296 | 800 | 445 | 295 | 22 | 12 | 298.5 | 23 | 8 |
| FRD-AV1 250 | DN250(10") | 625 | 318 | 855 | 495 | 355 | 26 | 12 | 362 | 25 | 12 |
Hot Tags: flange wet alarm check valve, China, manufacturers, suppliers, wholesale, price, Fire Nozzle For Truck, Angle Landing Valve Fire Fighting, Flange Flexible Disc Check Valve, Cabinet FM 200 Fire Protection System, Protection Guard For Protecting Sprinkler Heads, Medium Expansion Foam Nozzle Fire Fighting
Body Material: Ductile Iron,QT450;
Seal Disc Material: 304 Stainless Steel With NBR;
Ball Valve &Strainer &Check Valve: Brass Standard;
Piping Accessories: Galvanized Pipe Standard;
Working Pressure: 1.6Mpa;
Surface Finishing : Epoxy Red.
