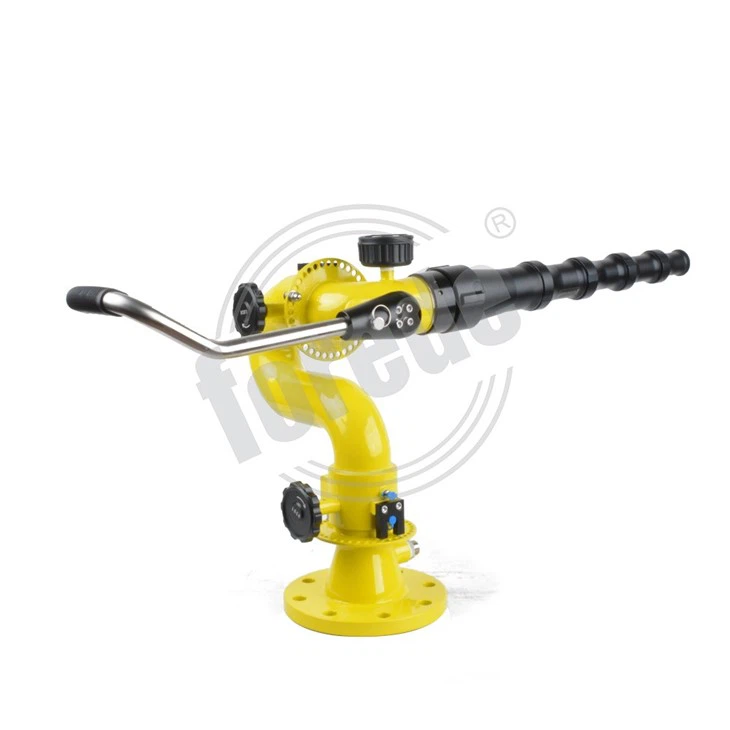

Stack Tips Water Cannons for Trucks
One of the standout features of the TFS1.AZ4 model is its remarkable throw range, capable of reaching distances of 70 meters or more. This enables wide coverage and the ability to tackle challenging environments with ease. The horizontal angle is adjustable from 0° to 330°, and the elevation angle ranges from -45° to +75°, allowing for customized targeting to suit specific operational requirements.
Equipped with a durable 2.5-inch (DN65mm) waterway and outlet, the water cannon guarantees steady and robust water flow. Its inlet comes with a versatile option of 3-inch or 4-inch BS4504 PN16 flange, ensuring compatibility with various truck water systems, while other customizations can be accommodated to fit unique setups.
In summary, the Stack Tips Water Cannon Model TFS1.AZ4 is an excellent choice for those seeking a dependable, adaptable, and high-performance water cannon. Its advanced design, precision control, and strong construction make it an asset for any truck-mounted water application, empowering users to meet challenges confidently and efficiently.
Products Detailed
Products Feature
Flow Rate
The flow rate of the TFS1.AZ series tiller-controlled Tiller Water Truck Cannons is a key feature for adapting to different fire scales. With options of 1200LPM and 3000LPM, it delivers precise water/foam volumes to suppress fires of varying intensities, ensuring efficient firefighting response.
Working Pressure
Working pressure is critical for reliable performance in harsh environments. 8 bar (0.8 MPa) rated working pressure ensures consistent water/foam delivery at optimal force, while the 1.6 MPa max working pressure provides safety margin for industrial firefighting operations.
Foam Jetting Range
The water jetting range of the TFS1.AZ series Tiller Water Truck Cannons enables long-distance fire suppression, with 70m for AZ040. These ranges allow firefighters to combat large-area fires from a safe distance, reducing exposure risk and minimizing damage spread.
Water Jetting Range
The foam jetting range is designed for Class B liquid fuel fires, reaching 70m for AZ040. This extended reach allows effective application of foam solution from a safe zone, ensuring reliable suppression of flammable liquid fires.
Foam Expansion
Built with a built-in stream shaper, the nozzle delivers focused, stable water/foam streams for optimal penetration. The smooth-bore anodized aluminum alloy nozzle ensures consistent flow patterns, maximizing fire suppression efficiency and cooling performance.
Outlet
The TFS1.AZ series Tiller Water Truck Cannons features a standard 2.5" NH outlet, paired with a 3"/4" BS4504 PN16 flange inlet (customizable). This universal connection design ensures easy integration with water sources, hoses, and industrial piping systems for seamless operation.

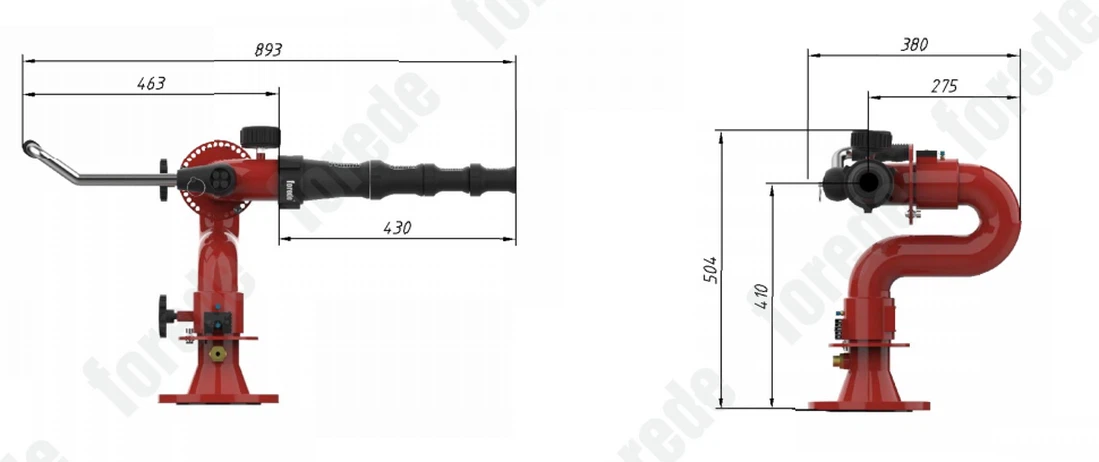

Technical Parameter
How to Maintain the Stack Tips Water Cannons for Trucks?
#### 1. **Regular Cleaning**
Keep the water cannon free from dirt, debris, and mineral buildup to maintain smooth water flow and precise aiming ability.
- Rinse cannons after each use with clean water.
- Use mild, non-corrosive cleaning agents to wipe down SS304 surfaces gently.
- Inspect and clean nozzles carefully to prevent clogging and ensure consistent spray patterns.
#### 2. **Lubrication of Moving Parts**
The horizontal and elevation angles provide versatile control, and lubrication helps maintain their smooth operation.
- Apply food-grade or marine-grade lubricant on swivel joints and elevation mechanisms regularly.
- Avoid excessive lubrication that can attract dust or debris.
#### 3. **Check Seals and Connections**
Reliable flange and outlet connections are essential for maintaining pressure and preventing leaks.
- Inspect BS4504 PN16 flange seals and gaskets periodically for wear.
- Tighten bolts securely but avoid overtightening to preserve flange integrity.
- Replace seals promptly if signs of deterioration appear to maintain a leak-free operation.
#### 4. **Pressure and Flow Monitoring**
Ensuring the water cannon operates within recommended pressures extends its service life.
- Monitor working pressure to stay within the 0.8 MPa recommended level, never exceeding the max working pressure of 1.6 MPa.
#### 5. **Periodic Functional Testing**
Test operation regularly to verify precise horizontal and elevation control, as well as effective throw ranges.
- Conduct routine water and foam performance tests to ensure optimal spray throw and pattern accuracy.
- Adjust angles and check rotational smoothness to confirm they meet your operational needs.
#### 6. **Protective Measures**
SS304 stainless steel offers excellent corrosion resistance; reinforcing this ensures even longer durability.
- Store water cannons in dry, sheltered environments when not in use.
- Consider protective covers to shield from dust and environmental factors.
#### 7. **Professional Inspection and Servicing**
For utmost reliability, have your equipment professionally inspected annually.
- Qualified technicians can identify potential improvements and ensure all components perform at peak efficiency.
|
Model |
TFS1.AZ040 |
|
Flow Rate |
1200LPM-3000LPM |
|
Working Pressure |
0.8 MPa |
|
Max Working Pressure |
1.6 MPa |
|
Throw Range(water) |
≥ 70 m |
|
Horizontal Angle |
0°~330° (angle customized) |
|
Elevation Angle |
-45°~+75° (angle customized) |
|
Waterway Size |
2.5'' (DN65mm) |
|
Outlet |
2.5'' NH |
|
Inlet |
3''/4'' BS4504 PN16 Flange, others customized |
Application Area
Rescue Services
Residential Buildings
Industrial Settings
Public Space
Frequently Asked Questions
Q: Can I choose the specifications of the Stack Tips Water Cannons?
Q: How to Use Stack Tips Water Cannons?
Q: Can the Monitor Head of the Stack Tips Water Cannons Be Replaced?
Q: What Are the Flange Standards for Stack Tips Water Cannons?
