A fire nozzle is a fundamental and critical component within the realm of firefighting equipment. It serves as the terminal device attached to the end of a fire hose, playing a pivotal role in controlling and directing the flow of water or fire - extinguishing agents towards the fire source.
The primary function of a fire nozzle is to regulate the flow rate, pressure, and spray pattern of the liquid being discharged. By adjusting the nozzle, firefighters can change the water's behavior. For instance, a solid - stream pattern is achieved when the nozzle is set to produce a concentrated, high - velocity jet of water. This is highly effective for reaching distant or deeply embedded fires, such as those in the upper floors of buildings or within thick vegetation in wildfires.
01
Versatile Spray Patterns
Fire nozzles offer adjustable spray patterns, like Straight stream, Narrow fog,Wide fog from solid streams for long - distance attacks to fog for wide coverage. This adaptability suits diverse fire scenarios, enhancing firefighting efficiency.
02
Precise Flow Control
They enable precise regulation of water flow rate. Firefighters can adjust it based on fire size, conserving water while ensuring sufficient supply for effective fire suppression.
03
Durable Construction
Made of high - strength materials like Hard Anodized Aluminum Alloy, fire nozzles are highly durable. They can withstand high pressure, heat, and physical impacts, ensuring long - term reliable use.
04
Ergonomic Design
With a well - designed handle, fire nozzles are easy to grip and maneuver. This reduces firefighter fatigue during prolonged operations, allowing for better control in emergencies.
Structure & Working Principles
The structure of a fire nozzle is compact and scientific. Every component is designed to achieve stable performance under high pressure. Its main components and working principles are explained as follows:
| Component Name | Description |
| Nozzle Body | The main frame made of lightweight alloy, plastic, or brass, which connects the hose and bears internal pressure. |
| Baffle / Spray Head | The front component that changes water flow direction and forms different spray patterns. |
| Flow Control Valve / Stem | Used to open, close, or adjust water flow. |
| Handle / Grip | Ergonomically designed for holding, rotating, and switching modes. |
| Sealing Rings and Gaskets | Made of high-temperature rubber to prevent water leakage under high pressure. |
| Swivel Joint | Allows the nozzle to rotate flexibly without twisting the hose. |
| Bypass or Pressure Relief System | Reduces recoil and stabilizes pressure automatically. |
Working Principles
- When water enters the nozzle, it is compressed and accelerated through a narrowed flow channel.
- By rotating the baffle or adjusting the head, the water flow is dispersed or concentrated to form different patterns.
- In fog nozzles, water impacts the deflector to break into tiny droplets with large heat absorption area.
- In combination nozzles, mode switching is completed by changing the position of the internal flow channel.
Forede Fire Nozzle Type

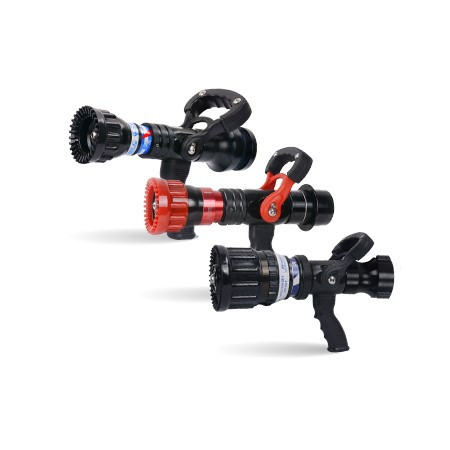

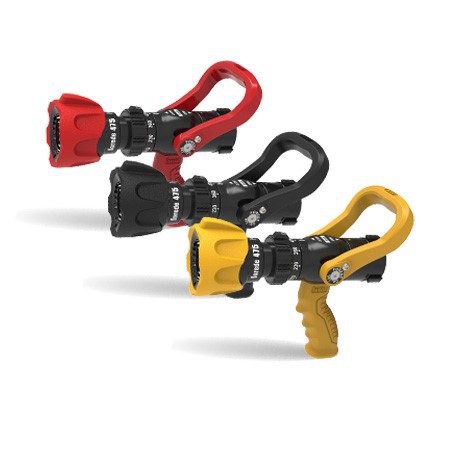

Selectable Fire Nozzle
A selectable flow fire nozzle is a high-performance, firefighter-centric terminal device designed to deliver adjustable water discharge rates while maintaining stable pressure and effective spray patterns. Unlike standard nozzles with fixed flow, this advanced equipment allows users to quickly switch between different flow rates to match fire size, fuel type, and operational needs, making it one of the most versatile tools in modern fire suppression systems.
The core advantage of a selectable flow fire nozzle is its ability to provide precise and reliable flow control. Firefighters can easily adjust water output from low to high levels without changing nozzles or interrupting attack. This flexibility improves efficiency, reduces water waste, and prevents excessive water damage in buildings or sensitive environments. Whether facing small, developing fires or large, fully involved blazes, the nozzle maintains optimal performance.
Automatic Fire Nozzle
An automatic fire nozzle is an intelligent, self-regulating terminal component widely used in modern fire protection systems. It is designed to automatically maintain stable water flow, spray shape, and working pressure without manual adjustment, providing consistent and reliable fire suppression even under fluctuating water supply conditions. This type of nozzle improves safety, efficiency, and adaptability, making it widely applied in industrial facilities, warehouses, commercial buildings, fire monitors, and fixed firefighting systems.
The core feature of the automatic fire nozzle is its self-compensating function. It uses an internal pressure-sensing structure to automatically adjust the water flow area. When water pressure changes, the nozzle stabilizes the flow rate and spray pattern in real time, ensuring a stable jet or fog effect. This eliminates the need for firefighters to repeatedly adjust settings and ensures effective extinguishing during dynamic operating conditions.
Special Fire Nozzle
Special fire fighting water nozzles are a classification of water nozzles with special application effects on the market by forede, including waterwall nozzles,dual agent water nozzles, defense water nozzless, etc. The special effects and functions of these water nozzles are different from those of other products.
Waterwall nozzle produces a "wall" of water that can help isolate and prevent the spread of fire.
The dual agent water nozzle combines water and foam helps to smother the fire and prevent re-ignition while the water provides additional cooling.
Defense water nozzles can be used to fight fires while also protecting firefighters from dangerous situations.
High Pressure Fire Nozzle
A high-pressure fire nozzle is a specialized firefighting terminal device designed to operate under elevated water pressure, delivering powerful, long-distance, and high-impact extinguishing media for demanding firefighting scenarios. It is engineered to perform reliably under high working pressure, making it widely used in petrochemical plants, wharves, forest fires, high-rise buildings, large-scale industrial fires, and emergency rescue situations.
The most prominent feature of the high-pressure fire nozzle is its ability to withstand and utilize high water pressure efficiently. It can convert high-pressure water flow into an extremely powerful, concentrated straight stream with exceptional penetration and range, allowing firefighters to attack fires from a safer distance. The strong jet can break through obstacles, penetrate dense smoke, and directly strike the root of the fire, significantly improving extinguishing speed and effectiveness.
Quick Attachment For Fire Nozzle
The Quick Attachment for Fire Nozzle is a fantastic addition to any firefighting equipment. It provides quick and easy access to foam aspiration tubes and shutoff ball valves, making it possible for firefighters to quickly respond to emergency situations.
The foam aspiration tube allows for the rapid application of foam, which can help extinguish fires more effectively and efficiently. Additionally, the shutoff ball valve on the Quick Attachment for Fire Nozzle is a valuable tool for firefighting. It allows firefighters to quickly shut off the water supply to the nozzle, which can be critical in emergency situations. This feature can help prevent accidental water damage to surrounding areas and buildings.
Application of Fire nozzle
Urban And Municipal Firefighting
Industrial And Petrochemical

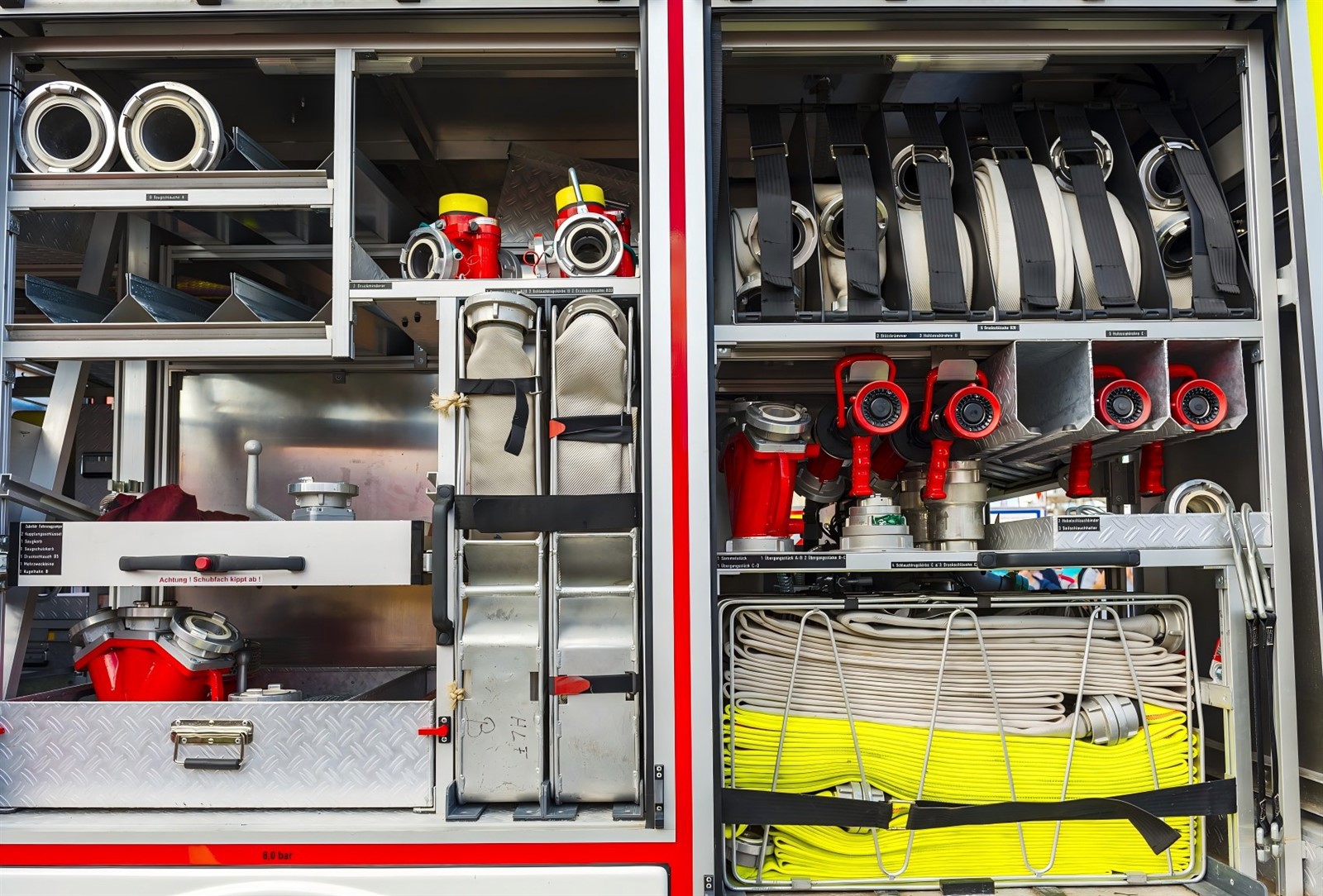

Firefighting vehicle
Aircraft Firefighting
forede® Lives & Property Defender
Welcome to inquire about our comprehensive fire nozzles! Whether it's selectable , automatic or special fire nozzle we have top - grade options. Our prices are competitive, and we're eager to serve. Ask for a quote!
