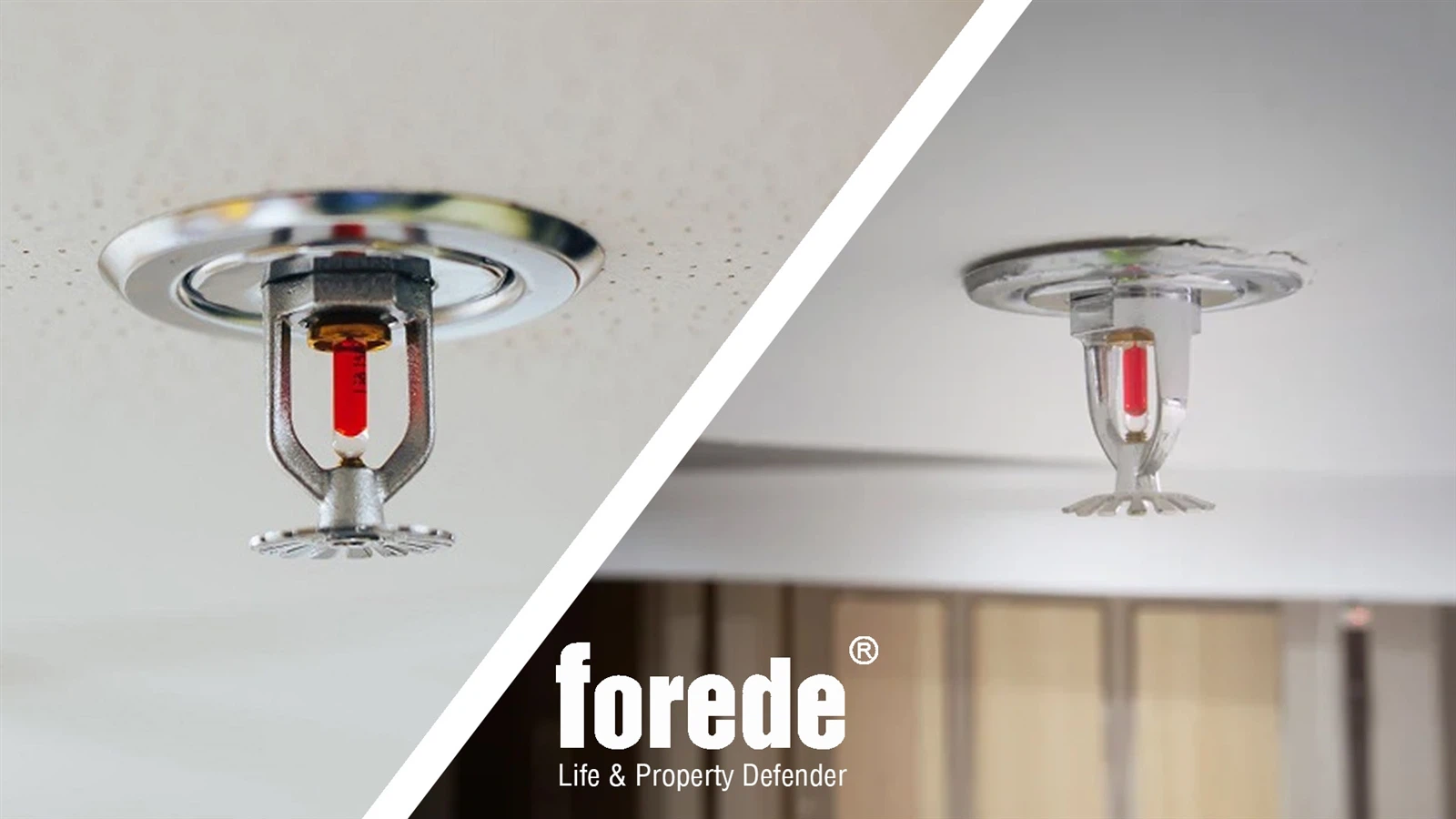

Pendent Fire Sprinkler and Escutcheon Plate
forede® brand Fire sprinklers are an essential part of any building's fire protection system. These life-saving devices are designed to automatically discharge water when a fire is detected, helping to suppress and control the spread of flames. One important component of a fire sprinkler system is the pendent fire sprinkler, which is hung from the ceiling and releases water in a downward spray pattern.
In addition to the pendent fire sprinkler, another crucial component is the escutcheon plate. This plate is installed around the sprinkler head to provide a finished and aesthetically pleasing appearance. Not only does the escutcheon plate enhance the overall look of the sprinkler system, but it also helps protect the sprinkler head from accidental damage.
It is important to ensure that both the pendent fire sprinkler and escutcheon plate are properly installed and maintained to ensure they function effectively in the event of a fire. Regular inspections and maintenance of these components are essential to ensure they are in good working condition and ready to respond when needed.
Overall, pendent fire sprinklers and escutcheon plates play a vital role in fire protection and safety. By understanding their importance and taking proper care of them, we can help ensure the safety of occupants and property in the event of a fire. Let's continue to prioritize fire safety and strive to make our buildings as safe as possible.
A Pendent Fire Sprinkler with Escutcheon Plate is a common type of sprinkler head used in fire protection systems, especially in commercial, residential, and institutional buildings. Here's an overview:
1. Pendent Fire Sprinkler
Definition: A pendent fire sprinkler is designed to hang down from the ceiling, with its deflector plate facing downward. It is one of the most widely used sprinkler types.
Working Principle: When exposed to heat (typically 57°C–74°C or higher depending on the temperature rating), the heat-sensitive element (glass bulb or fusible link) activates, releasing water. The water strikes the deflector and distributes in a circular spray pattern across the floor area below.
Applications:
Offices
Hotels
Shopping malls
Hospitals
Residential apartments
2. Escutcheon Plate
Definition: An escutcheon plate (sometimes called a trim plate or cover plate) is a circular metal or decorative ring installed around the sprinkler head where it penetrates the ceiling or wall.
Functions:
Aesthetic: Provides a clean and finished appearance by covering the hole cut for the sprinkler pipe.
Practical: Helps close gaps to reduce the spread of smoke and flames into ceiling cavities.
Alignment: Assists in centering and stabilizing the sprinkler head.
Types:
Two-piece adjustable escutcheon – allows for field adjustment when ceiling depth varies.
One-piece escutcheon – used when the ceiling depth is fixed and consistent.
3. Key Advantages of Pendent Sprinkler with Escutcheon Plate
Wide and even water distribution for effective fire suppression.
Neat, professional ceiling finish.
Available in different finishes (chrome, white, brass, etc.) to match interior design.
Compatible with both wet and dry pipe sprinkler systems.
