Products Description
Washdown Water Cannon
Developed specifically for high-dust and rugged mining working conditions, Forede Manual Mining Water Cannon is a dedicated mechanical spraying apparatus favored for its sturdiness and high adaptability. Differentiated from ordinary water cannon products, this model takes corrosion-resistant stainless steel as the raw material, which can effectively resist damage from mineral sediment, rainwater erosion and long-term high-frequency flushing, greatly extending the equipment's service life in complex outdoor sites. The product equips users with three mature fixed flow specifications, covering most daily mining operations including road dust reduction and stockpile humidification. For special projects with unique configuration requirements, Forede also provides targeted flow customization services to match onsite water pressure and pipeline conditions. Optimized internal runner design minimizes water resistance during transmission, enabling concentrated water jets to achieve longer spraying distance and better cleaning effect. Adopting a pure manual driving mode, the cannon gets rid of the limitation of power supply, allowing operators to adjust the spraying angle freely at any time. The simple mechanical structure requires no complicated maintenance work, only regular drainage to avoid internal blockage. Thanks to its outstanding durability and flexible deployment capability, this manual water cannon has become an essential supporting device for open-pit mines, quarries, freight terminals and large-scale construction projects.
Handle
Working Pressure
Flow
Warranty
Specification
| Model Number | TFS1.AF020 | TFS1.AF030 | TFS1.AF040 |
| Flow Rate | 1200LPM | 1800LPM | 2400LPM |
| Working Pressure | 8 bar | 8 bar | 8 bar |
| Max.Reach@8 bar | 50 Meters | 60 Meters | 65 Meters |
| Max.Fog Angle | 120° | ||
| Max Range of Motion |
-45° to +75° Vertically, 360° Rotation
|
||
| Waterway Size | 2.5''(65mm) | ||
| Monitor Outlet |
2.5"(65mm) NH male thread
|
||
| Monitor Inlet |
Flange 3" BS4504 is standard ( other sizes & standards are available )
|
||
| Material |
Monitor - SS304 Stainless steel
Tiller - SS304 Stainless steel
Nozzle - Hard Anodized Aluminium Alloy
|
||

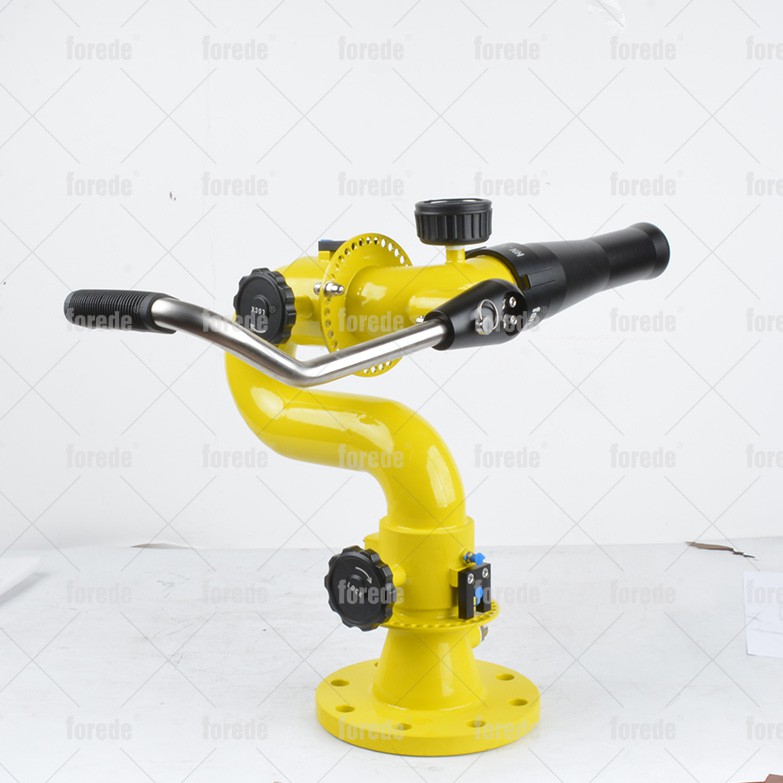

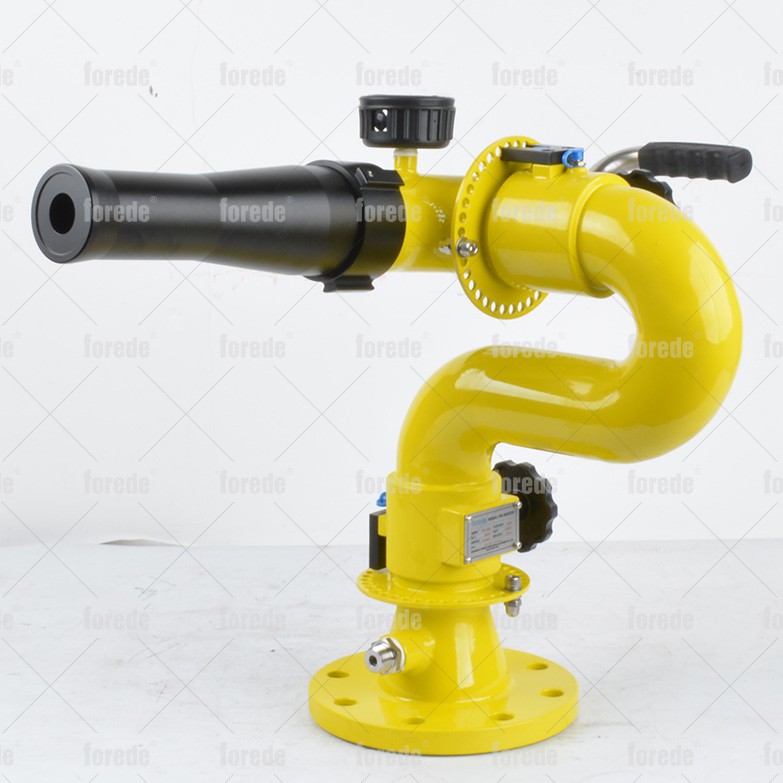

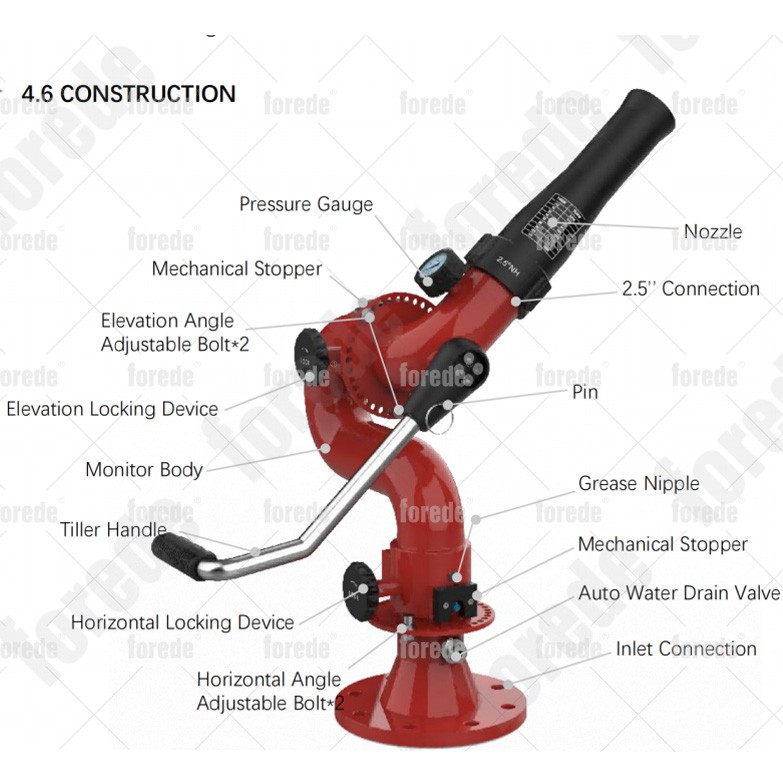

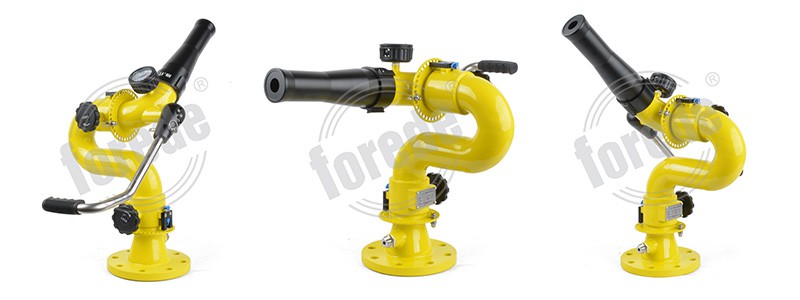

Detail Pictures
Frequently Asked Question
Frequently Asked Questions
Q: What is a wash bay water cannon?
-
A:forede Mining Water Cannon is a heavy-duty manually operated spray device crafted from full stainless steel. It is specially engineered for water truck retrofits and open-pit mining environments. The unit delivers concentrated straight water jets, configured with standard fixed flow rates of 20LPS, 30LPS and 40LPS, with customizable flow values to fit diverse on-site water supply systems.
Q. Advantages of wash bay water cannon?
-
A:manual water cannon adopts durable stainless steel construction to withstand sediment erosion and harsh outdoor weather. The purely mechanical structure contains no electrical parts to avoid circuit failure. It maintains stable jet pressure at fixed flow gears, and customizable flow parameters allow flexible matching for different working intensity and usage scenarios.
Q. Why Choose wash bay water cannon?
-
A: forede stainless steel mining water cannon features integrated forming, boasting stronger pressure resistance to cope with frequent high-intensity outdoor operations. The streamlined internal runner cuts down water pressure loss. The tool-free manual adjustment lowers usage thresholds, and its maintenance-free mechanical design effectively cuts long-term operating costs for users.
Q. Where to Use wash bay water cannon?
-
A: It is primarily designed for open-pit mines and quarries for dust suppression and stockyard watering. It is commonly mounted on mining water trucks for road dust removal and slope cooling. It also serves cargo terminals, large construction zones and industrial parks for equipment cleaning and daily environmental watering.
Q. How to Use wash bay water cannon?
-
A: Secure the water cannon to a fixed base or water truck platform and inspect all connecting pipelines. Select the standard 20LPS, 30LPS, 40LPS flow or customized specification. Manually adjust horizontal and vertical angles to complete spraying tasks. After daily work, drain internal residual water to prevent sediment blockage inside the nozzle.
